316L Steel Ball丨Lithium Battery Sealing Steel Ball - H.R.T. Precision Steel Ball Co.,Ltd

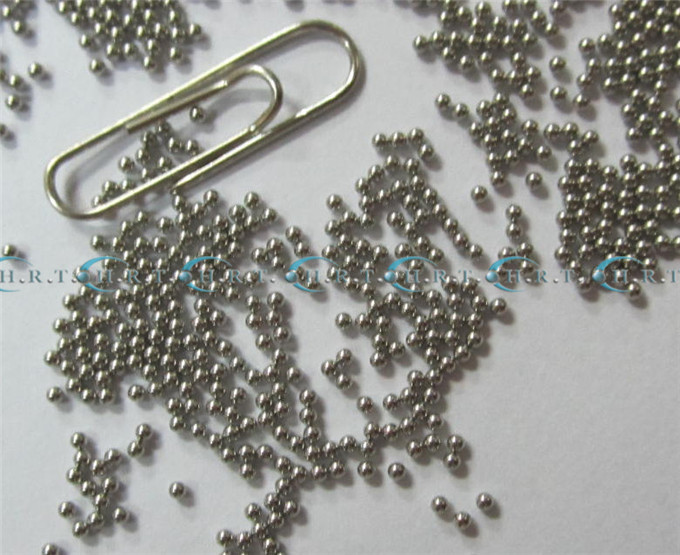

SUS 316L Lithium Battery Sealing Steel Ball

2016-10-31

1）Materials: SUS 316L

2）Diameters: 1.0mm, 1.1mm, 1.2mm, 1.28mm, 1.3mm, 1.32mm, 1.34mm, 1.35mm, 1.36mm, 1.4mm, 1.5mm, 1.55mm, ...

3）Grades: Gr100

4）Certificate: ISO9001:2008, ISO14001:2004, ISO/TS16949:2009
5）Application: Lithium Battery Steel Ball is suitable for lithium battery as sealing steel balls with SUS 316L stainless steel.

SUS 316L Chemical Composition %

C ≤0.03

Mn ≤2.00

Ni 12.00~15.00

Si ≤1.00

P ≤0.035

S ≤0.03

Cr 16.00~18.00

Mo 2.0~3.0

SUS 316L Physical Properties

TS ≥480MPa

YS ≥177MPa

EL ≥40%

Z ≥60%

Hardness ≤187HB; ≤90HRB; ≤200HV

ρ 7.98g/cm³

Cp/Cv 0.502J/(g*K)

For more informations, please contact: hrt5@chnsteelball.com.
