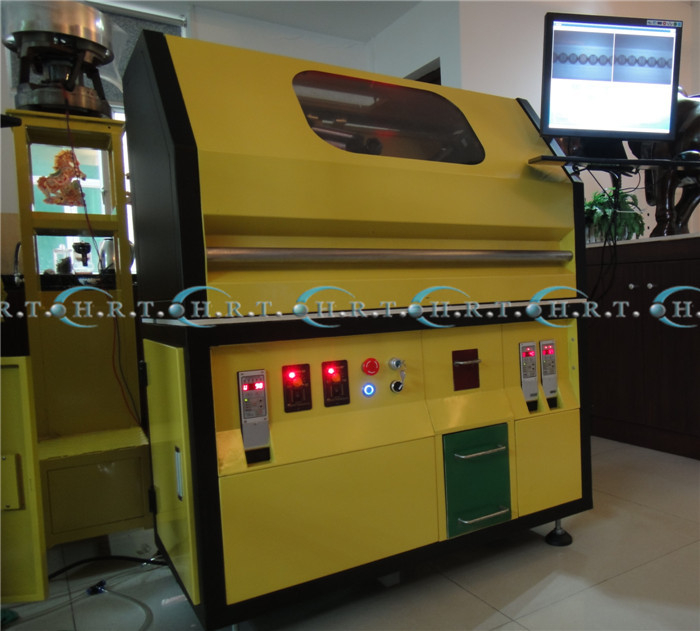

The latest Steel Ball Surface Detector is the first one which could batch detect the steel balls surface under the size of 2mm in the world, obtained numbers of International and National patents,solved the problem that couldn’t batch detect the miniature steel balls surface.

Steel Ball Surface Detector contains two parts as function:

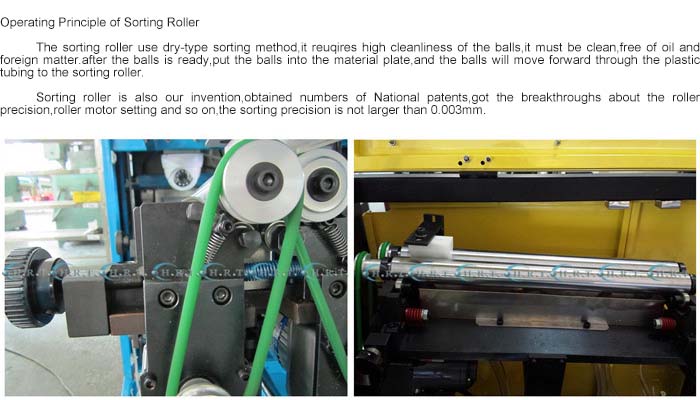

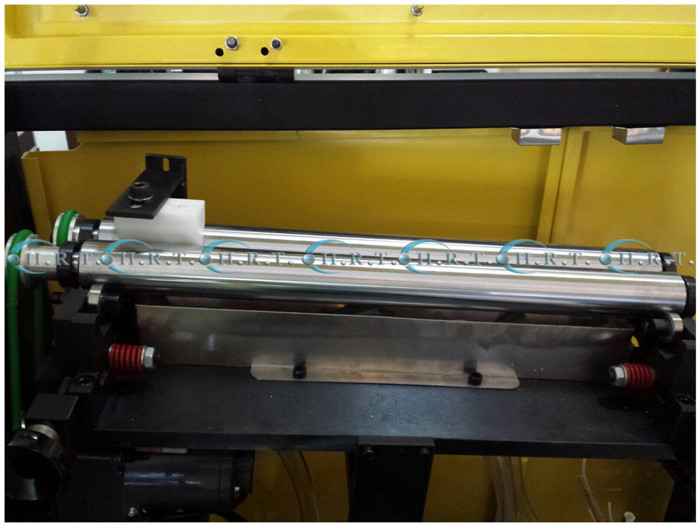

The first part: select the balls sizes precision by sorting roller,avoid mixing different size balls,control the variation of ball lot diameter effectively.

The second part: CCD Cameras detect the defect balls with Image Contrast Method, it takes the digital images automatically, choose one as the standard image,and when find the different images in operation,will pick out as unqualified one.

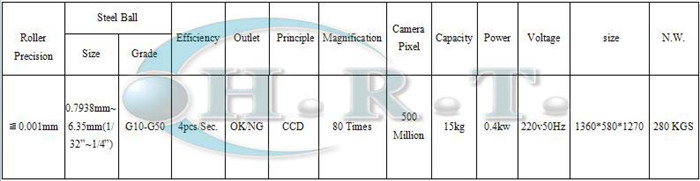

Technical Parameter:

Ball size available:0.7938mm~6.35mm(1/32 inches-1/4 inches);

Detection Speed: 14400pcs/hour;

Undetected Ration:0.0002 percent (manual control available);

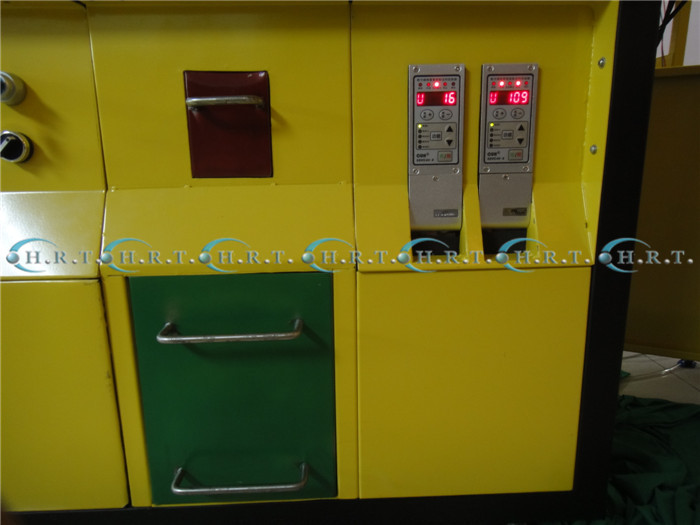

Collecting Box:Two Boxes(Qualified/ Disqualified)
