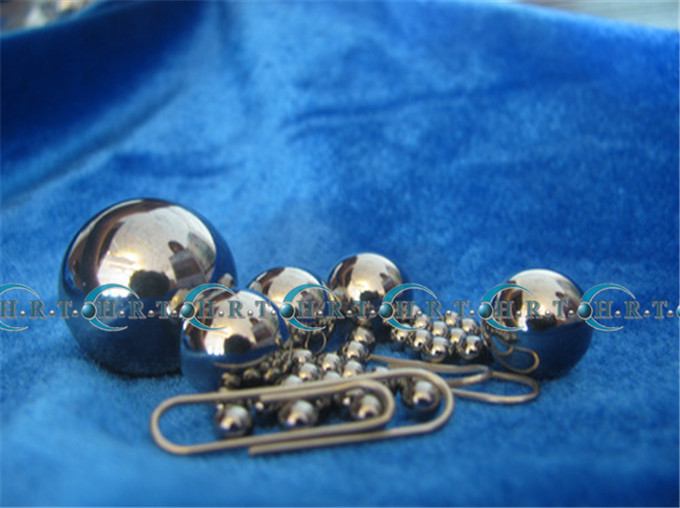

Carbon Steel Ball
2016-10-31
1)Materials: 1010/1015/1065/1085 Steel
2)Diameters: 1.0mm-250mm
3)Grades: G10-G1000
4)Hardness (HRC): HRC50-55(1010);HRC58-63(1085)
5) Certificate: ISO-9001,ISO-14001,TS-16949
6)Features: Carbon Steel Ball is very common, with a low price and high hardness. Usually used for magnetic microstructure of ferrite, and often oil-based packaging. The plating can be galvanized, gold-plated, nickel, chrome, etc.
7)Applications: Carbon Steel Balls are used in automotive applications, for semi-precision bearings, and in commercial applications such as casters, locks, and drawer slides. Other applications for carbon steel balls include locks, bicycles, roller skates, slides, trolleys and conveyors.
8)Comparison: Because of the wear resistance and hardness of chrome steel ball are better than carbon steel ball, so the chrome steel ball is more durable than the carbon steel ball.
1010 Chemical Composition(C10)
C
0.08%--0.10%
Mn
0.30%-0.60%
P
0.040% max.
S
0.050% max.
